The 10m³ 3.5tons mobile garbage compactor is an all-in-one sanitation device, collecting, compressing and storing waste. Its compact design merges compaction mechanism and storage bin, no need for separate transfer vehicles.
Ideal for small communities/residential areas, handling daily waste easily. Good for commercial pedestrian streets/small business districts, moving flexibly on narrow roads. Fits schools/small factories with steady waste. Works in urban villages/old neighborhoods, moving freely where large vehicles can’t, saving space and boosting efficiency.
| Minimum Construction Size | mm | 7500×4000×4000 |
| Overall Dimensions | mm | 4880×2250×2040 |
| Rated Pressure of Hydraulic System | MPa | 20 |
| Maximum Compression Force | kN | 230 |
| Garbage Bin Capacity | m³ | 10 |
| Maximum Loaded Garbage Weight | t | >6 |
| Pushing Stroke | mm | 1250 |
| Pushing Speed | m/min | 3.2 |
| Matching Power Supply Voltage | V | 220/380 |
| Power | kW | 3 |
| Total Weight | t | 3.5 |
| Effective Volume of Feeding Hopper | m³ | 2.5 |

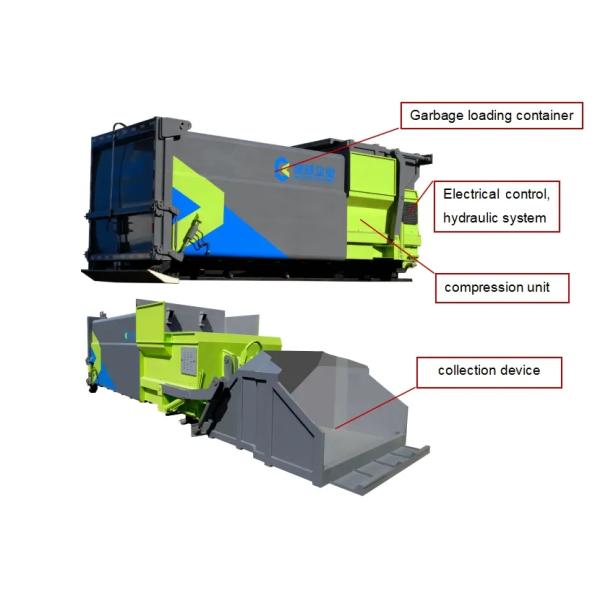

Product Composition
The components of the mobile garbage compactor include: garbage loading container, electrical control system, hydraulic system, compression unit, and collection device.
(1) Garbage loading container: Integrates box shell, compression storage bin (2/3 capacity), and gravity-operated rear door locked by dual hydraulic cylinders. Quick-connect oil circuit enables truck-mounted operation.
(2) Collection device: Hopper-type with dual tilting cylinders flips waste into receiving bin. Optional barrel-turning mechanism available.
(3) Compression unit: Features foldable frame and compression cylinder. Pushing plate transfers waste to storage bin.
(4) Electrical control: Touchscreen PLC interface on left side for programming; wired remote handle for daily operation.
(5) Hydraulic system: Pump-valve configuration with over-range alarm. Fast-moving circuit optimizes efficiency, stability, and power consumption. Valves execute precise actions via electrical commands. (Word count reduced by ~40% while retaining technical details)
Operation Process

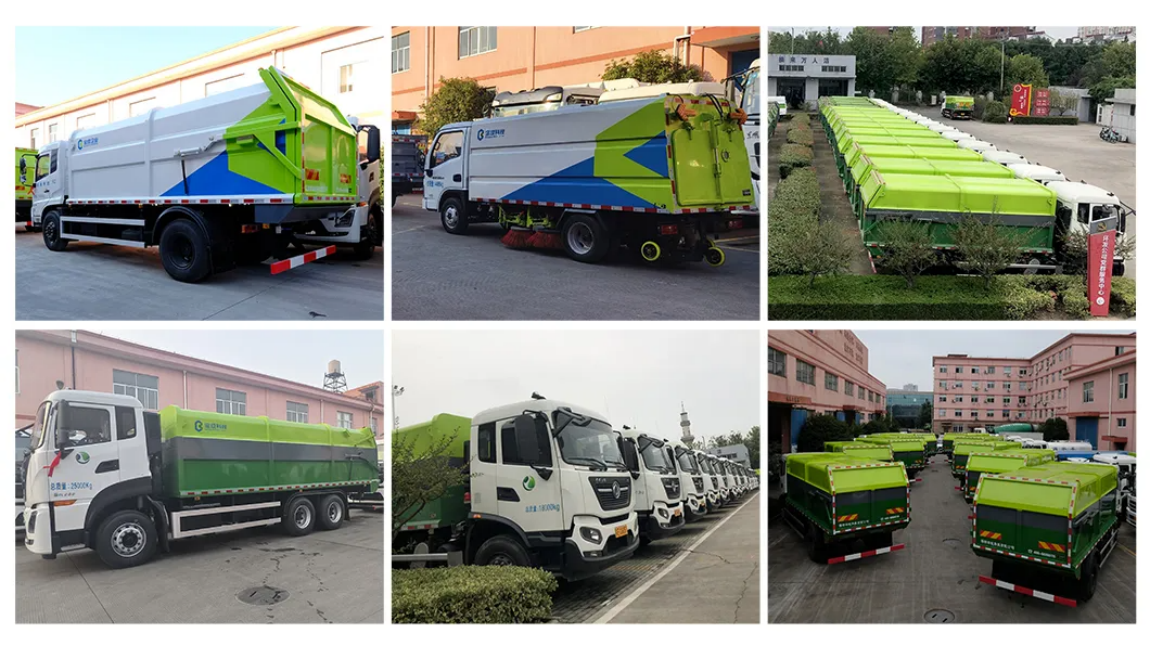

Actual Photos
