High Efficiency 18000KG Compressed Garbage Truck With EQ1180GL6DJ Chassis

Name: High Efficiency 18000KG Compressed Garbage Truck With EQ1180GL6DJ Chassis
Brand: Bioclean
Price: 4585 USD

China High Efficiency 18000KG Compressed Garbage Truck With EQ1180GL6DJ Chassis wholesale

Brand Name : Bioclean

Model Number : ZBJ5181ZYSC

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 4585-6855usd

Payment Terms : T/T,L/C

Supply Ability : 5000unit/year

Delivery Time : 15-45 working days

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Dimension(L x W x H) : 8655×2500×2995(mm)

Chassis : EQ1180GL6DJ

Engine : B6.2NS6B230

Weight : 18000(Kg)

Load Capacity : 7920,7855(Kg)

Chassis Total Capacity : 9950(Kg)

Maximum Speed : 88(km/h)

Approaching/Departure Angle : 25/11(°)

Front/Rear/Rear Extension : 1410/2440,1450/2400(mm)

Axle Load : 6500/11500

Bin Lifting equipment : Various Bin lifting solutions avaliable

Tyre number : 6

Tyre Type : 10.00R20 18PR,295/80R22.5 16PR,275/80R22.5 18PR

Contact Now

ZBJ5181XX 18000KG OMD mobile trash compressed garbage compactor truck

The stuffing device is located at the tail of the box body, with a built-in scraper mechanism and a lifting mechanism, which can press the garbage into the garbage bin.

The garbage bin is a component of this product for collecting and storing domestic waste, and it is also the base for connecting the compaction and filling device. The overall stress structural parts of the garbage bin are designed reliably, and the rigidity is reasonably matched; the garbage bin is designed to be airtight, which can effectively prevent secondary pollution.

The feeding mechanism is a device for loading the garbage in the trash can into the stuffing device. The feeding mechanism can load two 240L trash cans at the same time.

The sub-frame is a basic component of the superstructure of the product. It is fixed on the chassis girder through the connection seat and plays a role in fixing and supporting the superstructure.

Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle.

Parameters:

Item	ZBJ5181ZYSC
Energy type	Diesel
Dimension(L x W x H)	8655×2500×2995(mm)
Chassis	EQ1180GL6DJ
Engine	B6.2NS6B230
Weight	18000(Kg)
Rated Loading	7920,7855(Kg)
Axle Load	6500/11500
Front/Rear Overhang	1410/2440,1450/2400(mm)
Tyre size	10.00R20 18PR,295/80R22.5 16PR,275/80R22.5 18PR

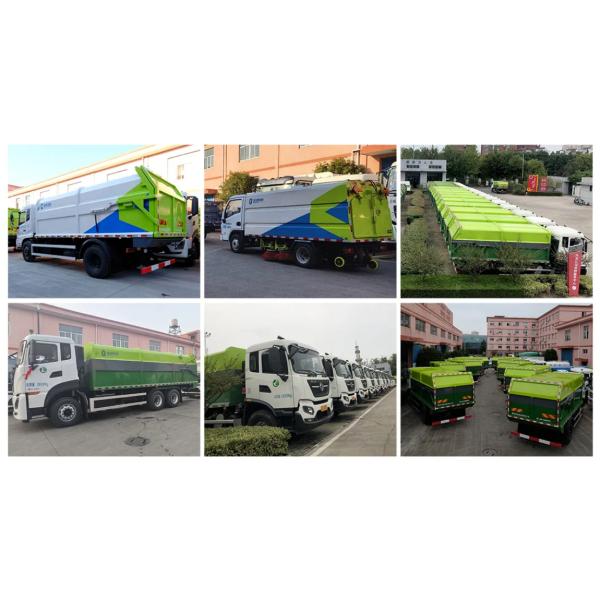

Actual photos:

High Efficiency 18000KG Compressed Garbage Truck With EQ1180GL6DJ Chassis
