18000KG Diesel Engine Refuse Compactor Truck With Heavyload High Speed

Name: 18000KG Diesel Engine Refuse Compactor Truck With Heavyload High Speed
Brand: Bioclean
Price: 3685 USD

China 18000KG Diesel Engine Refuse Compactor Truck With Heavyload High Speed wholesale

Brand Name : Bioclean

Model Number : ZBJ5180ZYSC

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 3685-7655USD

Payment Terms : T/T,L/C

Supply Ability : 5000unit/year

Delivery Time : 15-45 working days

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Dimension(L x W x H) : 8560×2500×2980(mm)

Chassis : DFH1180EX8

Engine : D6.7NS6B230

Weight : 18000(Kg)

Load Capacity : 7235(Kg)

Chassis Total Capacity : 10570(Kg)

Maximum Speed : 88(km/h)

Approaching/Departure Angle : 17/12(°)

Front/Rear/Rear Extension : 1400/1030,1430/1000(mm)

Axle Load : 6500/11500

Bin Lifting equipment : Various Bin lifting solutions avaliable

Tyre number : 6

Tyre Type : 10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR

Contact Now

ZBJ5180XX 18000KG diesel mobile trash compressed garbage compactor truck

The stuffing device is located at the tail of the box body, with a built-in scraper mechanism and a lifting mechanism, which can press the garbage into the garbage bin.

The feeding mechanism is a device for loading the garbage in the trash can into the stuffing device. The feeding mechanism can load two 240L trash cans at the same time.

The garbage bin is a component of this product for collecting and storing domestic waste, and it is also the base for connecting the compaction and filling device. The overall stress structural parts of the garbage bin are designed reliably, and the rigidity is reasonably matched; the garbage bin is designed to be airtight, which can effectively prevent secondary pollution.

Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle.

The sub-frame is a basic component of the superstructure of the product. It is fixed on the chassis girder through the connection seat and plays a role in fixing and supporting the superstructure.

Parameters:

Item	ZBJ5180ZYSC
Energy type	Diesel
Dimension(L x W x H)	8560×2500×2980(mm)
Chassis	DFH1180EX8
Engine	D6.7NS6B230
Weight	18000(Kg)
Rated Loading	7235(Kg)
Axle Load	6500/11500
Front/Rear Overhang	1400/1030,1430/1000(mm)
Tyre size	10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR

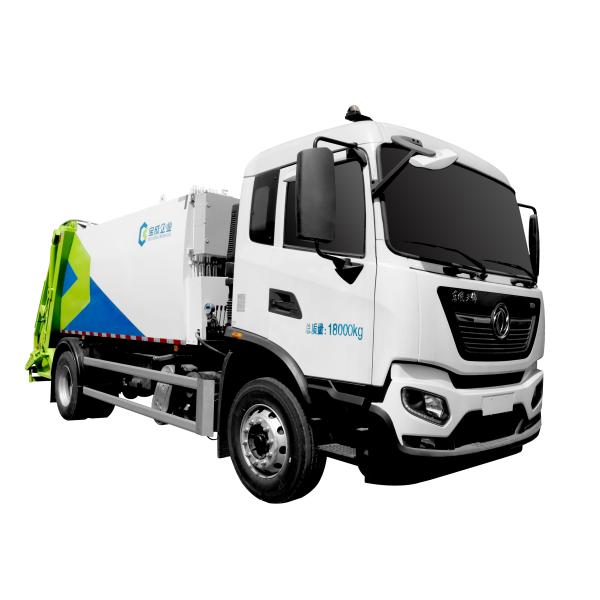

Actual photos:

18000KG Diesel Engine Refuse Compactor Truck With Heavyload High Speed
