Customization 18000KG Garbage Compactor Truck With 6 Tyres ZBJ5180XX

Name: Customization 18000KG Garbage Compactor Truck With 6 Tyres ZBJ5180XX
Brand: Bioclean
Price: 4585 USD

China Customization 18000KG Garbage Compactor Truck With 6 Tyres ZBJ5180XX wholesale

Brand Name : Bioclean

Model Number : ZBJ5180ZYSD6

Place of Origin : Ningbo, China

MOQ : 1 Piece

Price : 4585-6855usd

Payment Terms : T/T,L/C

Supply Ability : 5000unit/year

Delivery Time : 15-45 working days

Packaging Details : Wooden Case /Iron Frame/Container/SKD /CKD

Certification : CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Dimension(L x W x H) : 8740,8670,8550,8450,8700,8840,8900,8585,8725,8785,8475,8615,8675,8375,8515,8575×2550,2500×3300,3400(mm)

Chassis : DFV1183GDP6DJ1

Engine : B6.2NS6B230

Weight : 18000(Kg)

Load Capacity : 7660,7725,7245,7310,7005,7070(Kg)

Chassis Total Capacity : 10145,10560,10800(Kg)

Maximum Speed : 100(km/h)

Approaching/Departure Angle : 21/12(°)

Front/Rear/Rear Extension : 1440/2400,1300/2900,1440/2900,1500/2900,1300/2785,1440/2785,1500/2785,1300/2675,1440/2675,1500/2675,1300/2575,1440/2575,1500/2575(mm)

Axle Load : 6500/11500

Bin Lifting equipment : Various Bin lifting solutions avaliable

Tyre number : 6

Tyre Type : 10.00R20 18PR,275/80R22.5 18PR,10.00R20 16PR,11.00R20 16PR,11.00R20 18PR,295/80R22.5,295/60R22.5 18PR

Contact Now

Customization 18000KG Garbage Compactor Truck With 6 Tyres ZBJ5180XX

Product Brief – 18 Ton Diesel Garbage Compactor Truck (Export Model)

Gross Vehicle Weight (GVW): 18,000 kg

Payload Capacity: 7,245–7,725 kg (varies by configuration)

Wheelbase: 4,500 mm

Body Length (varies): 8,375–8,900 mm

Main Function:

Equipped with sealed compression box, loading unit, and electric-hydraulic control system

Designed for automated garbage bin tipping, compression, and transport

Optional Rear Equipment:

Barrel lifter, triangular hopper, ground hopper, swing arm, pneumatic seal cover, or fully sealed body

Dust cover, curved box, valve covers, electric control switch optional

Structure & Safety:

Side guard: Q235B steel, bolted; rear guard: replaced by functional unit (clearance: 490 mm)

Optional: wheel covers, LED work lights (only in stationary work mode), ETC unit

ABS by Dongke Knorr, WABCO, or WanAn (models: 3631010-C2000, ABS-E 4S/4M, etc.)

Engine Options (L/100 km):

D6.7NS6B230, B6.2NS6B230, D4.5NS6B220, D4.0NS6B195, etc.

Fuel consumption: ~25.9–26.6 L/100 km

Heavy-duty sanitation vehicle designed for efficient and safe urban waste handling.

Parameters:

Item	ZBJ5180ZYSD6
Energy type	Diesel
Dimension(L x W x H)	8900,8585,8725,8785,8475,8615,8675,8375,8515,8575×2550,2500×3300,3400(mm)
Chassis	DFV1183GDP6DJ1
Engine	B6.2NS6B230
Weight	18000(Kg)
Rated Loading	7660,7725,7245,7310,7005,7070(Kg)
Axle Load	6500/11500
Front/Rear Overhang	1440/2400,1300/2900,1440/2900,1500/2900,1300/2785(mm)
Tyre size	10.00R20 18PR,275/80R22.5 18PR,10.00R20 16PR,11.00R20 16PR,11.00R20 18PR,295/80R22.5,295/60R22.5 18PR

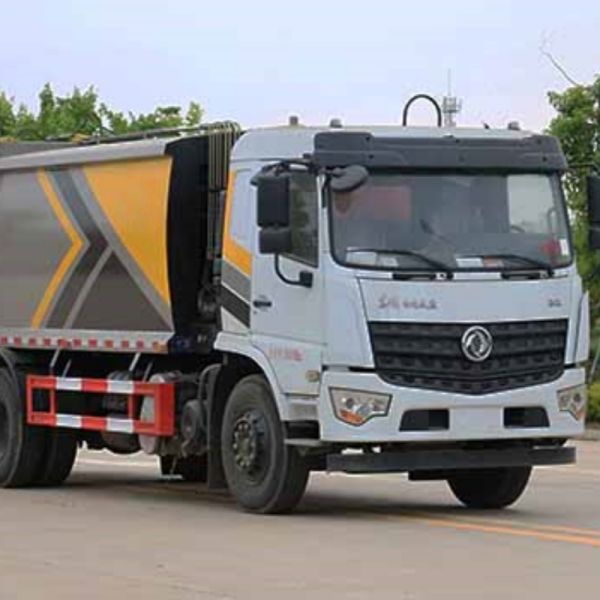

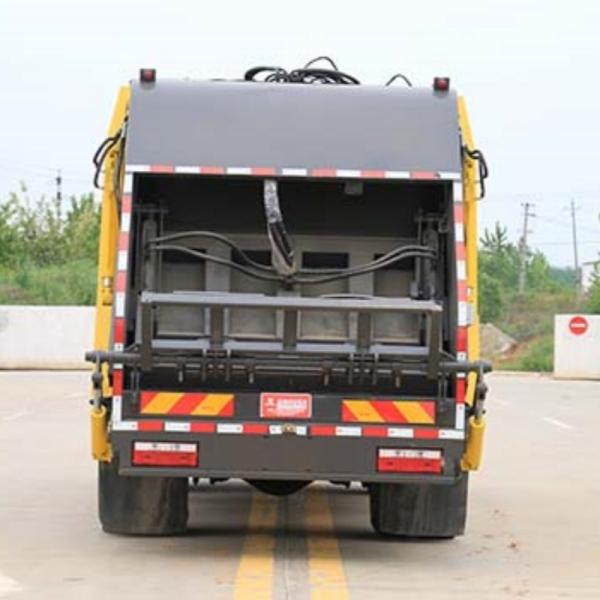

Actual photos:
